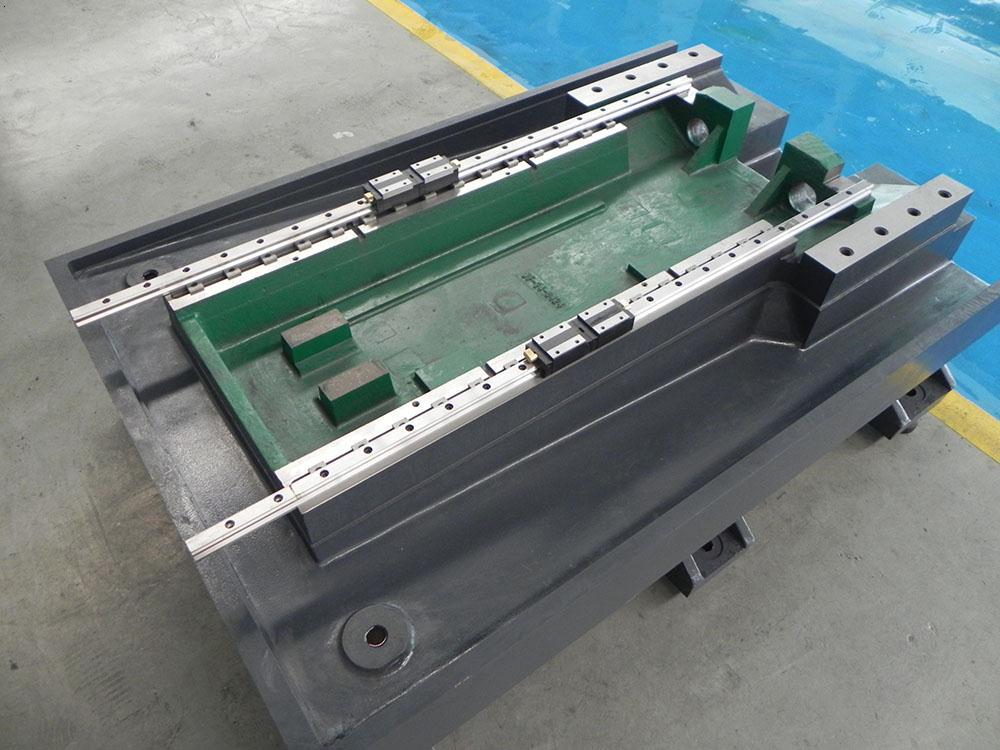

CNC hard rail sliding table

CNC hard rail sliding table

  • import orders import orders
This product is not in regular stock。
Because the delivery is imported, it takes 1-2 months。

CNC hard rail sliding table

Trade name:
The slide table consists of a bed, skateboard, screw, and motor. Its structure is simple and easy to maintain. The working principle of a mechanical sliding table is that the skateboard moves longitudinally on the bed due to its screw drive, combined with the function of a gearbox.

price:Discuss

The delivery date will be notified to you as discussed。

Equipment manufacturer:
Hebei Quanyi Machinery
Related categories:
CNChardrailslidingtable |

  The slide table consists of a bed, skateboard, screw, and motor. Its structure is simple and easy to maintain. The working principle of a mechanical sliding table is that the skateboard moves longitudinally on the bed due to its screw drive, combined with the function of a gearbox. Multiple operating speeds such as speed can be obtained.

  The mechanical slide is used to achieve feed motion, which can be used horizontally or vertically. Various components such as drilling head, boring head, milling head, and boring end face head are installed on the mechanical slide to complete drilling, expanding, reaming, boring, scraping end face, chamfering, turning end face, milling, and tapping processes.

  The slide table is divided into 250, 300, 400, 500, 600, 800, 1000, and 1500 millimeters according to different specifications based on the length of the stroke. Users can choose according to their needs, and indicate the travel length when placing an order. The slide is a rectangular guide rail used for precision machining.

  With the development of the mechanical industry in recent years. On the basis of the original mechanical slide, CNC mechanical slide, cross slide, line rail slide, etc. have evolved from the original mechanical slide. Replace the ordinary lead screw with a ball screw and embed a linear guide rail on the cast iron guide rail surface. Replace the gearbox motor with a servo motor. Enable the slide to move forward and backward quickly. Utilize ball screws and tracks to achieve high operating speed and accuracy.
